ROV models
We are rov builder company that produce a series of modern digital surface powered underwater remotely operated vehicles (ROV models) designed for observation, inspection, exploration or search & rescue missions. There is a whole range of different configurations available with up to 500 meters depth and cable (tether) ranging up to 5000 meters.
The main differences between the models are the configuration of the thruster power, cable length, cameras, additional equipment integration possibility’s and depth rating.
For the following applications:
- Port Structures
- Marine Research surveys
- Nuclear
- Ship inspection
- Military, Police, and Rescue
- Water reservoirs
- Offshore Wind Parks and at Oil & Gas
- Search & Recovery
- Aquaculture
- Hydro Power Plants (Dams)
- Diver Observation
- Film & Documentary production
- Pipeline external & internal Inspection

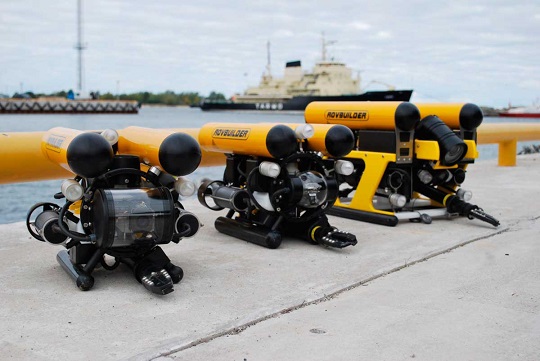

ROV Models currently available:
ALPHAROV D150
Working depth till 150 meters.
Tether length 150 meters (up to 300 m).
Full HD 1080P 2MP Color camera.
4 Brushless thrusters : 2 Horizontal; 1 Vertical; 1 Lateral.
ALPHAROV PROF D200
Working depth till 200 meters.
Tether length 200 meters (up to 600 m).
Full HD 1080P 2MP Color camera.
5 Brushless thrusters: 2 Horizontal; 2 Vertical; 1 Lateral.
ALPHAROV PROF D300
Working depth till 300 meters.
Tether length 300 meters (up to 1200 m).
Front: Color Full HD and B/W cameras. Rear: additional color/BW camera Full HD 1080P 2MP.
7 Brushless thrusters: 4 Horizontal; 2 Vertical; 1 Lateral.
Vectored thrusters configuration available for this model.
ALPHAROV PROF D500
Working depth till 500 meters.
Tether length 500 meters (up to 5000 m).
Front: Color Full HD and B/W cameras. Rear: additional color/BW camera Full HD 1080P 2MP.
7 Brushless thrusters: 4 Horizontal; 2 Vertical; 1 Lateral.
Vectored thrusters configuration available for this model.
All ALPHAROV models are operated with an easy to use digital joystick from the control case. The console is build in a professional Pelican case and contains all electronics for the remote control, power supply and video processing including video text overlay.
Additionally on ROV can be installed:
ROUND SCAN NAVIGATION SONAR
NON DESTRUCTIVE TESTING (NDT):
CONTACT CATHODIC-PROTECTION PROBE,
ULTRASONIC THICKNESS GAUGING SYSTEM;
2 JAW OPEN / CLOSE / 360 ⁰ ROTATION MANIPULATOR
3 / 4 / 5 FUNCTION ELECTRIC MANIPULATOR ARM;
LYYN HAWK PORTABLE OR BOARD INTEGRATION KIT;
ACOUSTIC POSITIONING USBL SYSTEM;
WATER QUALITY SENSORS;
DOPPLER VELOCITY LOG (DVL);
MULTIBEAM SONARS;
SIDE SCAN SONAR;
CLEANING BRUSH;
ROPE CUTTER;
SAMPLERS;
4K COLOR CAMERA AND RGB LED LIGHTS OR OTHER EQUIPMENT.
